Ahlu Cantilever Servo Transfer System- ACSTS Series

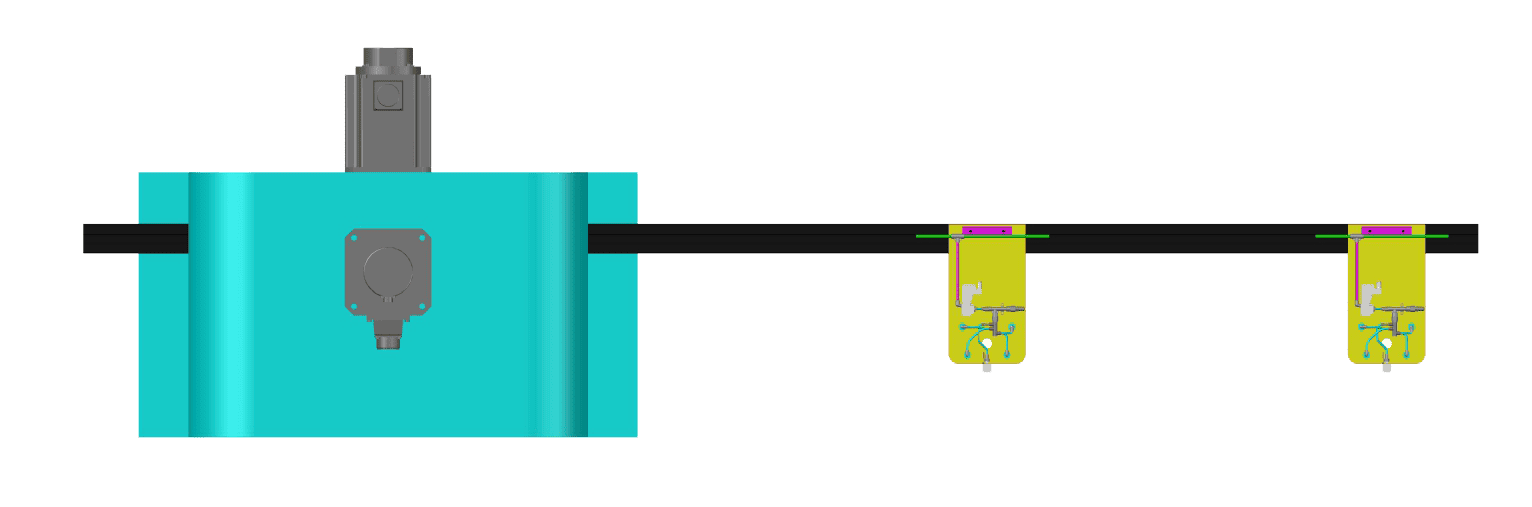

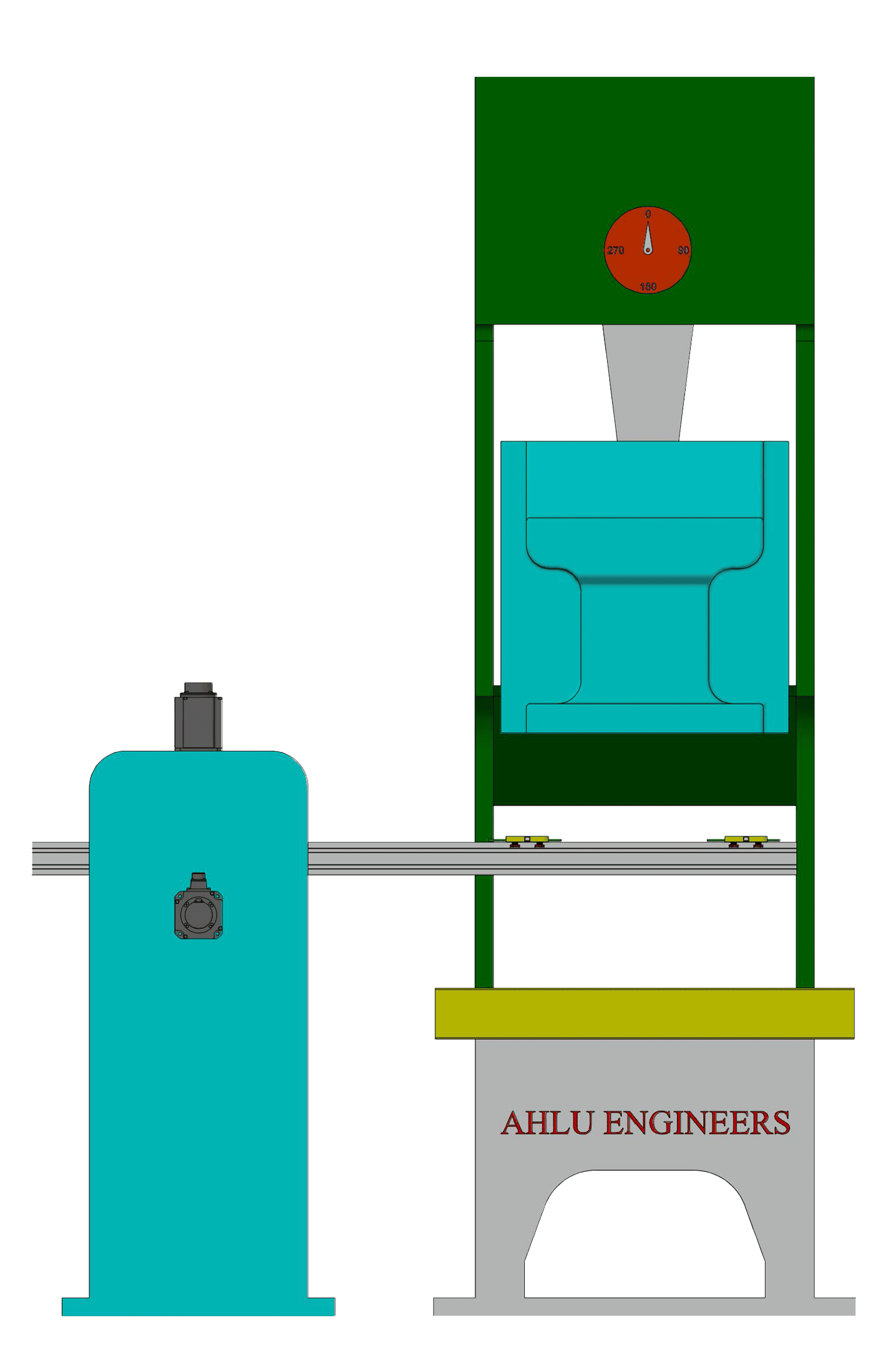

Mount this system on a general-purpose press machine to achieve automated transfers in 2 Axis with minimal changes. Best suited for C frame type presses. This programmable transfer system drives a transfer unit via a set of servo motors with the help of a Cantilever arrangement single bar mechanism. Three variants of ACSTS series are available so that you can select a transfer pitch appropriate for your purpose.
Common Characteristics of Single Bar System
- Each Servo Axis is operated with high accuracy with the help of Precision Servos.
- To Protect Tooling and Machine, each system is by-default comes with mis - feed die - stuckage & Jamming detection feedbacks are taken in each process cycle to provide required safety.
- The Position Synchronization is performed with the help of Rotary Encoders which connects to the crankshaft of the press. All the transfer axes are driven by servo motor and run synchronously with the press.
- Along with Encoders, Transfer System Controller stays in-continuous communication with press PLC along with the Additional Hard Sensors mounted on output shaft via Rotary cam box to reduce any accidental risk in case of Encoder failure.

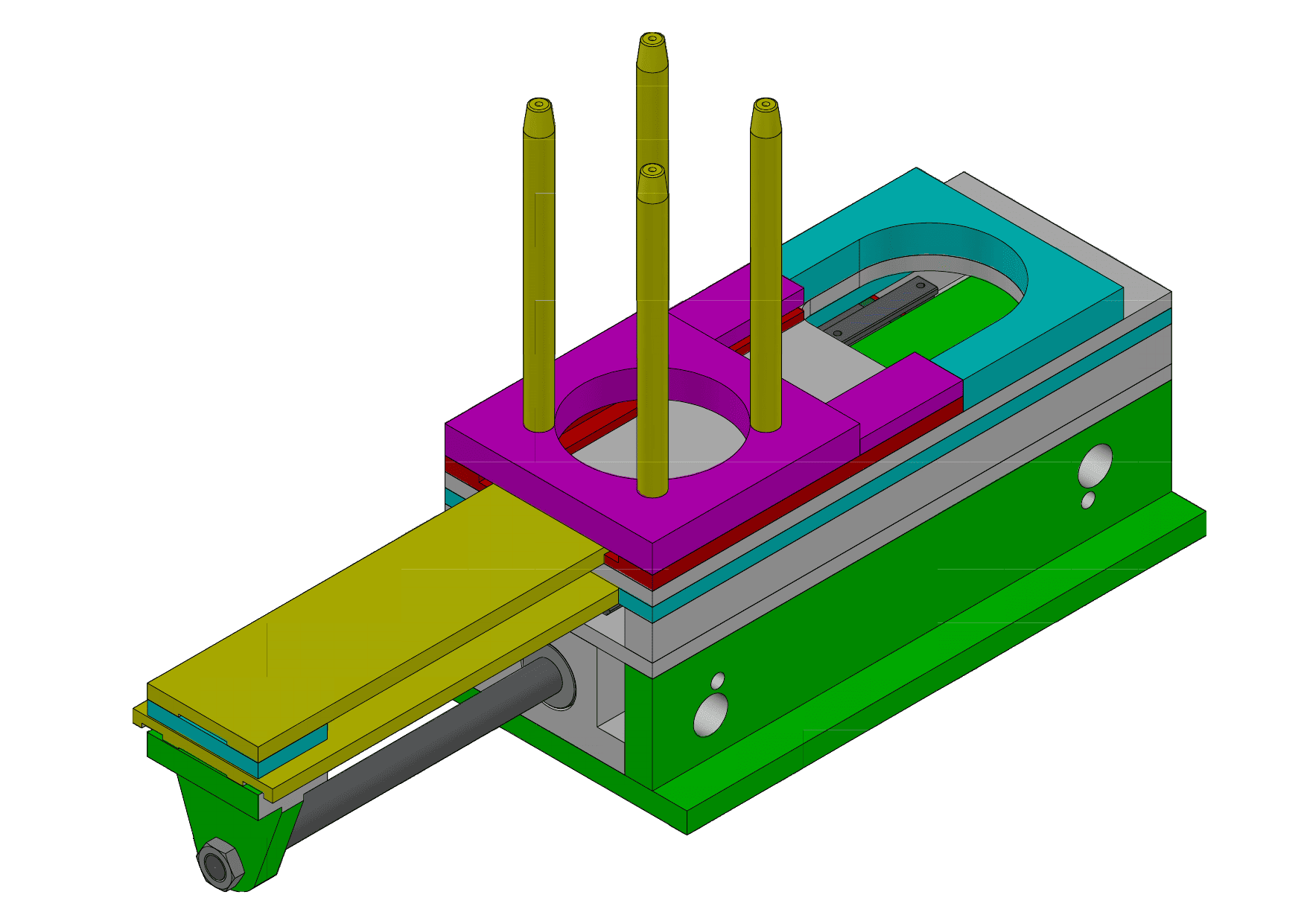

- Blank Feeders are generally used to feed Blanks via Magazine type feeders but Servo Sheet Feeders or Zig Zag Feeders can also be utilized by customizing to suit Transfer system & its respective press.
Technical Specifications
| Parameter | Value |
|---|---|
| Transfer Pitch / Stroke Range | 0–500 mm (3 variants) |
| Number of Axes | 2 (X Transfer + Z Lift) |
| Number of Servos | 2 |
| Maximum SPM | 50 spm (ACSTS-150L) |
| Press Tonnage / Capacity Range | 60–200 Ton |
| Bar Type | Cantilever (Single Bar) |
| Gripper Axis | No |
| Max Workpiece Weight / Thickness | 2–5 kg |
| Control System | EtherCAT + Ethernet/IP PLC |
Ideal For
Industries
- Automotive
- White Goods
- Small Components
Applications
- C-frame press automation
- Compact transfer setups
- Minimal-change retrofit installations
- High-speed small part transfers
Product Catalogue
Ahlu Cantilever Servo Transfer System- ACSTS Series
Download Product Catalogue
Get comprehensive technical information, specifications, and usage guidelines for Ahlu Cantilever Servo Transfer System- ACSTS Series.
Free download • No spam • Instant access
Interested in Ahlu Cantilever Servo Transfer System- ACSTS Series?
Get in touch with our engineering team for detailed specifications, pricing, and lead times.
Request Quote for Ahlu Cantilever Servo Trans...Explore Our Premium Solutions
Our wide array of expertly designed automation solutions, tailored to enhance your manufacturing processes with precision and efficiency.

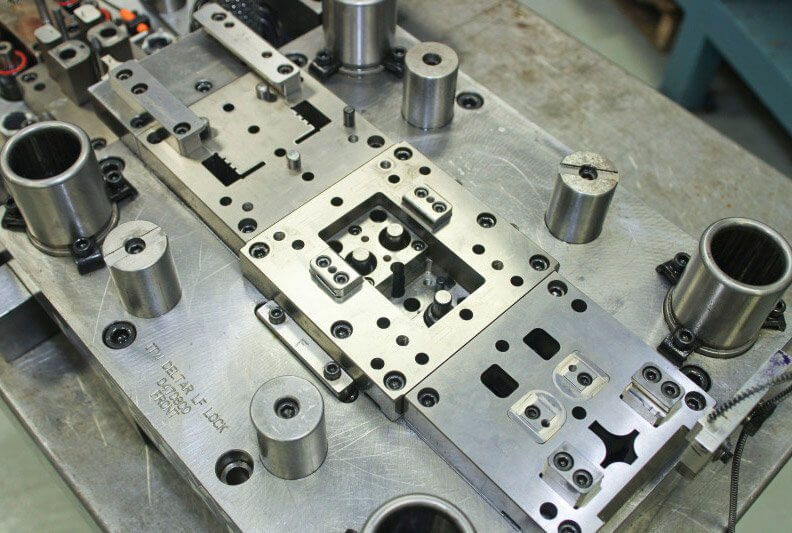

Transfer Dies
